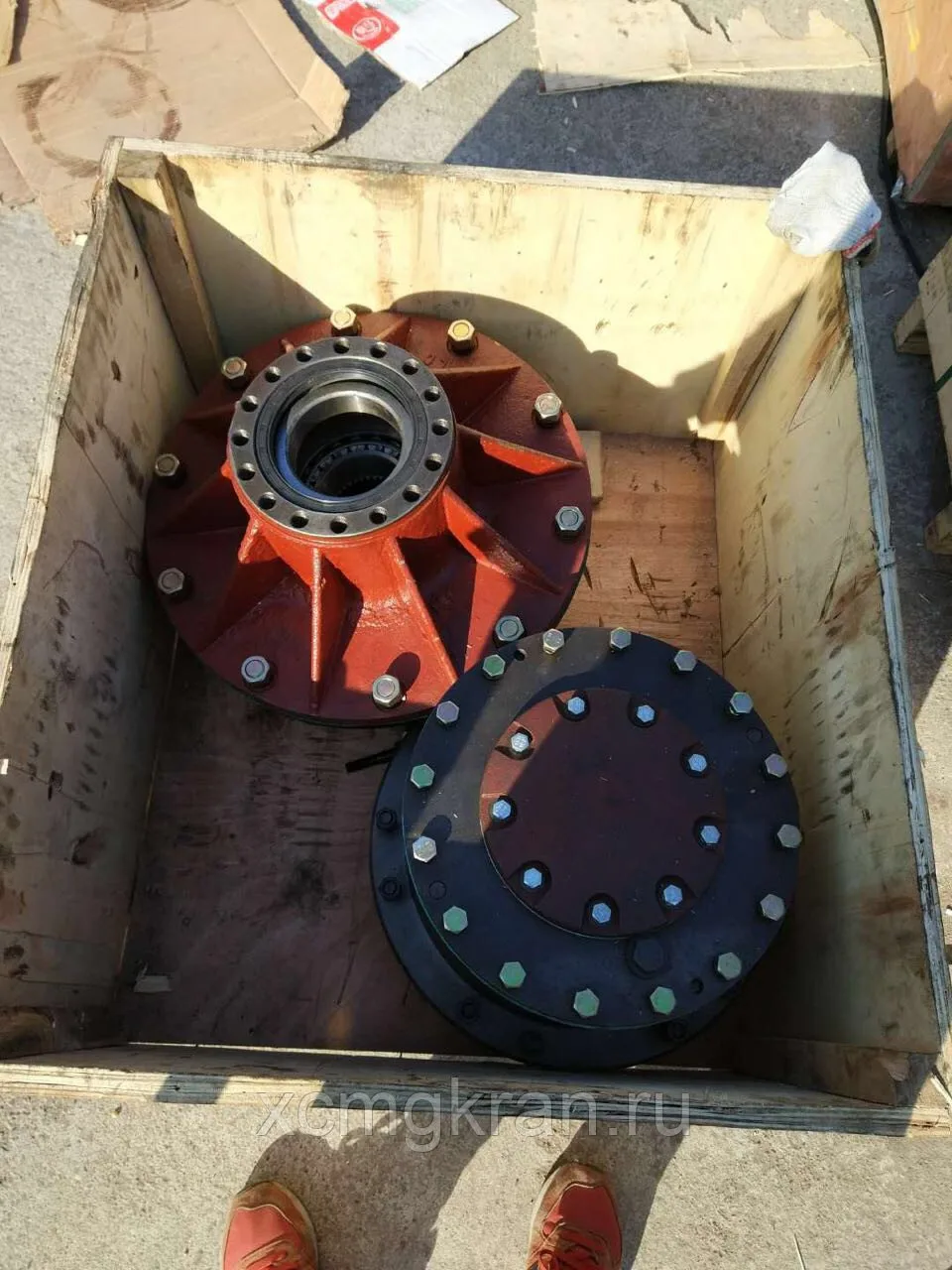

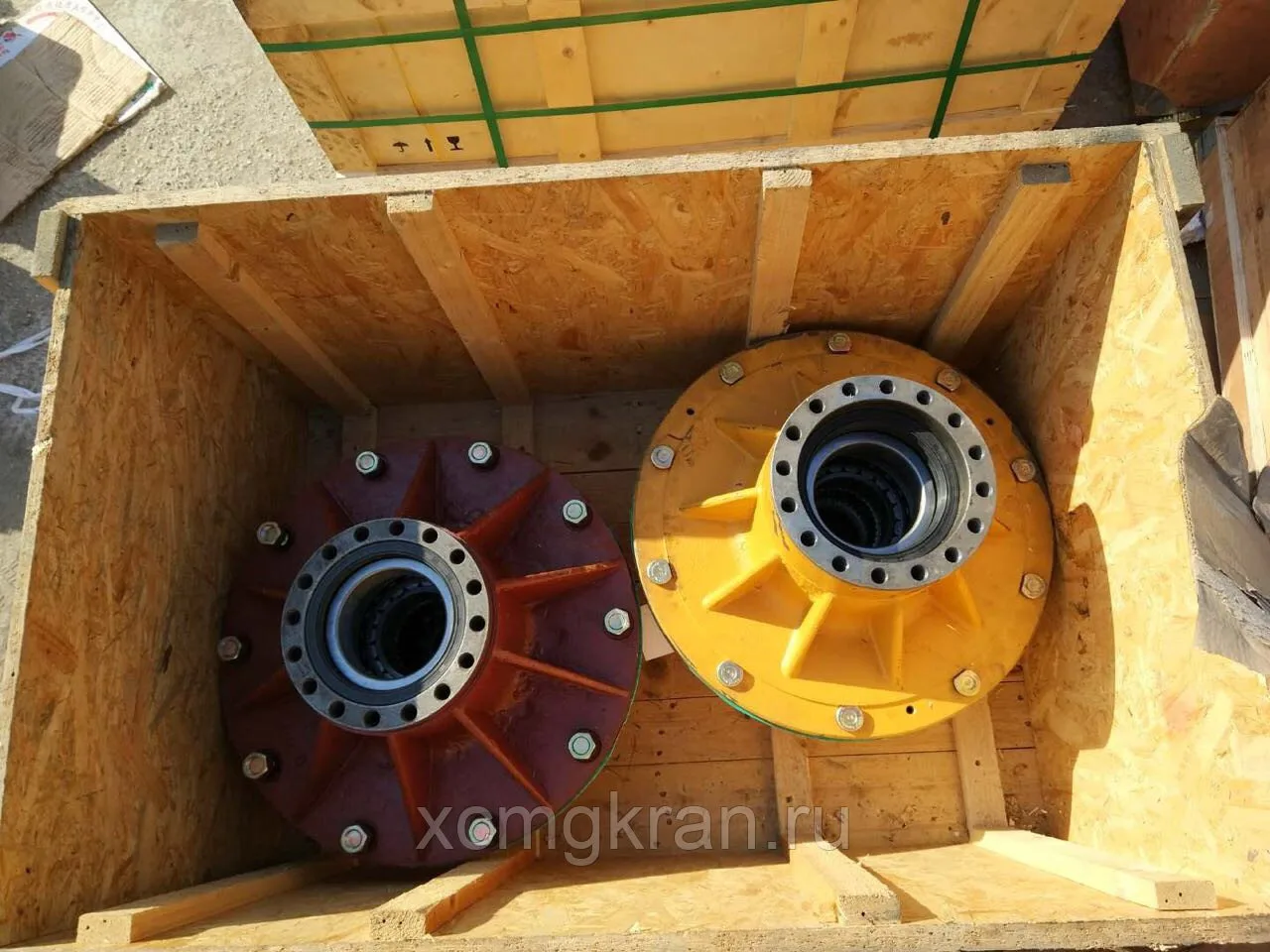

Бортовой редуктор погрузчика changlin чанлин ZL30H
Колесный редуктор changlin чанлин ZL30H
| No. | Part No. | Ver. | Q’ty | |
| 1 | B-G001190-00008 | 1 | Pin | 2 |
| 2 | Z30E.6-1 | 1 | Front axle Case | 1 |
| 3 | B-G061730-00010 | 1 | Nut | 8 |
| 4 | B-G061710-00013 | 1 | Nut | 8 |
| 5 | B-G000930-00008 | 1 | Washer | 8 |
| 6 | B-G00097B-00010 | 1 | Washer | 8 |
| 7 | B-J010000-00011 | 1 | Plug | 4 |
| 8 | B-J009820-00008 | 1 | Washer | 4 |
| 9 | W-03-00023 | 1 | Vent-plug | 2 |
| 10 | Z30.6E-2 | 1 | Side shaft | 2 |
| 11 | Z30E.6-15 | 1 | Cover | 2 |
| 12 | Z30E.6-16 | 1 | Gasket | 2 |
| 13 | Z30E.6-12 | 1 | Shaft | 6 |
| 14 | B-G003080-00001 | 1 | Ball | 6 |
| 15 | Z30E.6-9 | 1 | Planet carrier | 2 |
| 16 | B-G057850-00028 | 1 | Bolt | 8 |
| 17 | Z30E.6-8 | 1 | Gasket | 2 |
| 19 | B-G00894A-00016 | 1 | Washer | 2 |
| 20 | Z30E.6-11 | 1 | Spacer | 12 |
| 21 | B-G003090-00002 | 1 | Needle | 168 |
| 22 | Z30E.6-10 | 1 | Planet gear | 6 |
| 23 | B-G001190-00004 | 1 | Pin | 4 |
| 24 | Z30E.6-7A | 1 | Gear ring | 2 |
| 25 | Z30E.6-6 | 1 | Wheel hub | 2 |
| 26 | B-G002970-00015 | 1 | Bearing | 2 |
| 27 | B-G09877A-00015 | 1 | Oil seal | 2 |
| 28 | Z30E.6-5 | 1 | Sleeve | 2 |
| 29 | Z30.6-6 | 1 | Brake disk | 2 |
| 30 | Z30.6-5 | 1 | Check spacer | 12 |
| 31 | B-G000930-00005 | 1 | Spacer | 56 |
| 32 | B-G057860-00014 | 1 | Blot | 24 |
| 33 | Z30E.6-3A | 1 | Supporting shaft（L） | 1 |
| Z30E.6-4A | 1 | Supporting shaft（R） | 1 | |
| 34 | Z30.6-30 | 1 | Gasket | 2 |
| 35 | Z30.6-19A | 1 | Shim | 2 |
| Z30.6-19B | Shim | 2 | ||
| Z30.6-19C | Shim | 2 | ||
| 36 | Z30.6-18 | 1 | Dowel | 2 |
| 37 | B-G001190-00015 | 1 | Pin | 2 |
| 38 | B-G001190-00007 | 1 | Pin | 4 |
| 39 | Z30E.6-14 | 1 | Sun gear | 2 |
| 40 | B-G001190-00014 | 1 | Pin | 4 |
| 41 | Z30E.6-13 | 1 | Washer | 2 |
| 42 | B-G008100-00001 | 1 | Nut | 2 |
| 43 | B-G008580-00002 | 1 | Washer | 2 |
| 44 | B-G008120-00002 | 1 | Nut | 2 |
| 45 | Z30.6-24 | 1 | Bush | 2 |
| 46 | B-G002970-00016 | 1 | Bearing | 2 |
| 47 | Z30.6-27 | 1 | Nut | 24 |
| 48 | Z30.6-28 | 1 | Bolt | 24 |
| 49 | Z30E.6-2 | 1 | Washer | 8 |
| 50 | B-G000930-00008 | 1 | Spacer | 16 |
| 51 | B-G057850-00029 | 1 | Bolt | 16 |
| 52 | B-G057820-00097 | 1 | Bolt | 18 |
| 53 | B-Q020490-00009 | 1 | Washer | 18 |
| 54 | B-G000930-00010 | 1 | Washer | 4 |
| 55 | Z30.6-31 | 1 | Bolt | 4 |
| 56 | B-G057830-00006 | 1 | Bolt | 18 |
| 57 | B-G000930-00001 | 1 | Washer | 18 |
| 58 | B-G057830-00056 | 1 | Bolt | 32 |
| 59 | B-G008270-00004 | 1 | Pin | 4 |
| 60 | Z30H.6.1-1 | 1 | Name plate | 1 |
