Описание

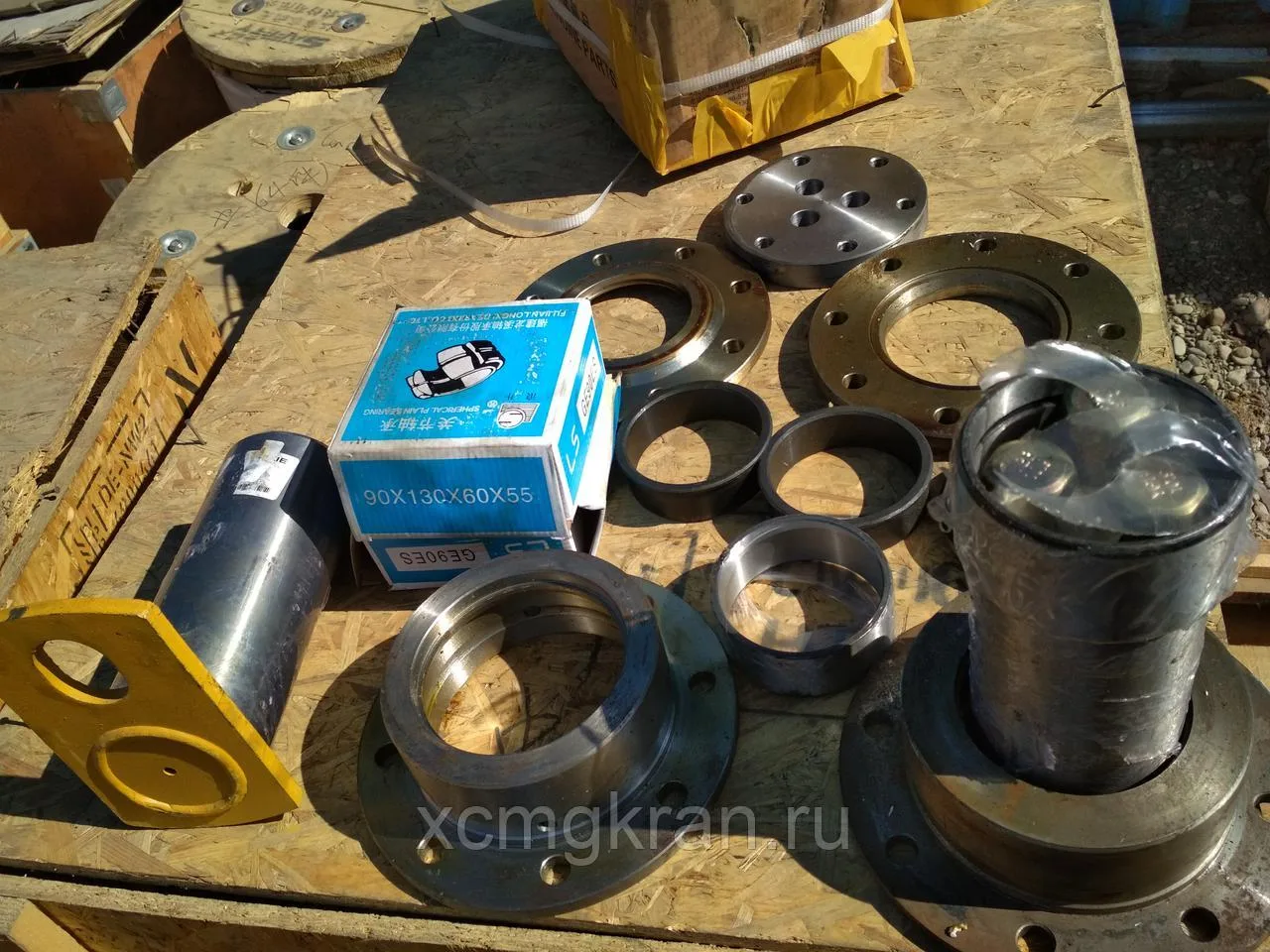

Комплект Сочленении рамы погрузчика CHANGLIN 956,957
| No. | Part No. | Ver. | Q’ty | |
| 1 | B-G10708C-00007 | 1 | Dust Ring | 2 |
| 2 | Z50G.12D-3 | 1 | Bearing cover | 1 |
| 3 | B-G091630-00008 | 1 | Bearing | 2 |
| W-03-00280 | 1 | Bearing | 2 | |
| 4 | Z50G.12D-6 | 1 | Bearing cover | 1 |
| 5 | B-Q020490-00005 | 1 | Washer | 16 |
| 6 | B-G057860-00040 | 1 | Frame lock | 16 |
| 7 | Z50G.12D-2 | 1 | Bearing cover | 1 |
| 956.12A-7 | 1 | Bearing cover | 1 | |
| 8 | Z50G.12D-4 | 1 | Bearing cover | 1 |
| 9 | B-G057830-00060 | 1 | Frame lock | 2 |
| 10 | B-G000930-00005 | 1 | Washer | 2 |
| 11 | B-G00097B-00006 | 1 | Washer | 2 |
| 12 | Z50B.12.2E.2 | 1 | Baffle | 1 |
| 13 | B-G10708C-00002 | 1 | Dust Ring | 2 |
| 14 | Z50H.12C.1 | 1 | Oil system of right turning | 1 |
| 15 | Z50H.12C.2 | 1 | Oil system of left turning | 1 |
| No. | Part No. | Ver. | Q’ty | |
| 1 | Z60F.12-13 | 1 | Sleeve | 2 |
| 2 | B-Q01201F-00034 | 1 | Hinge pin | 1 |
| 3 | B-Q01201E-00003 | 1 | Washer | 1 |
| 4 | B-G057830-00065 | 1 | Frame lock | 1 |
| 5 | B-G057830-00067 | 1 | Frame lock | 2 |
| 6 | B-Q020490-00007 | 1 | Washer | 2 |
| 7 | Z60F.12-10 | 1 | Baffle | 1 |
| 956.12A.7 | 1 | Baffle | 1 | |
| 956.12A.7A | 1 | Baffle | 1 | |
| 8 | Z50G.12D-5 | 1 | Shaft | 1 |
| 956.12A-6 | 1 | Shaft | 1 | |
| 9 | Z60F.12-12 | 1 | Sleeve | 1 |
| 956.12A-5 | 1 | Sleeve | 1 | |
| 10 | B-G057850-00064 | 1 | Frame lock | 3 |
| 11 | B-Q020490-00011 | 1 | Washer | 3 |
| 12 | B-G057820-00040 | 1 | Frame lock | 6 |
| 13 | B-Q020490-00003 | 1 | Washer | 6 |
| 14 | Z50G.12D-1 | 1 | Cover | 1 |
| 15 | Z60F.12-3 | 1 | Sleeve | 1 |
| 956.12A-4 | 1 | Sleeve | 1 | |
| 16 | Z60F.12-4 | 1 | Shim | 2 |
| 17 | Z60F.12-5 | 1 | Shim | 2 |
| 18 | Z60F.12-6 | 1 | Shim | 2 |
| 19 | B-Q021000-00002 | 1 | Frame Lock | 1 |
| 20 | 956.12A-8 | 1 | Joint | 1 |
