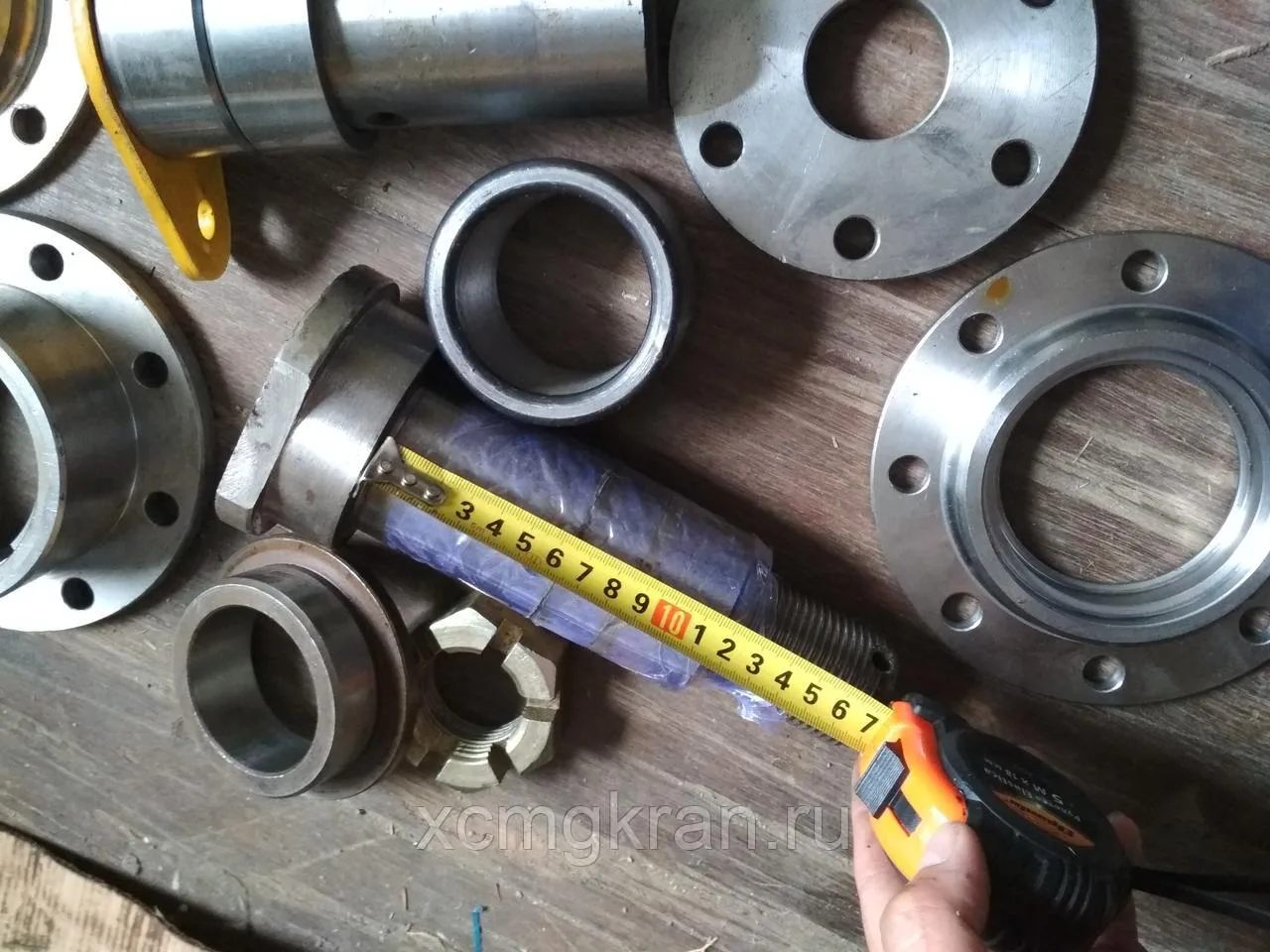

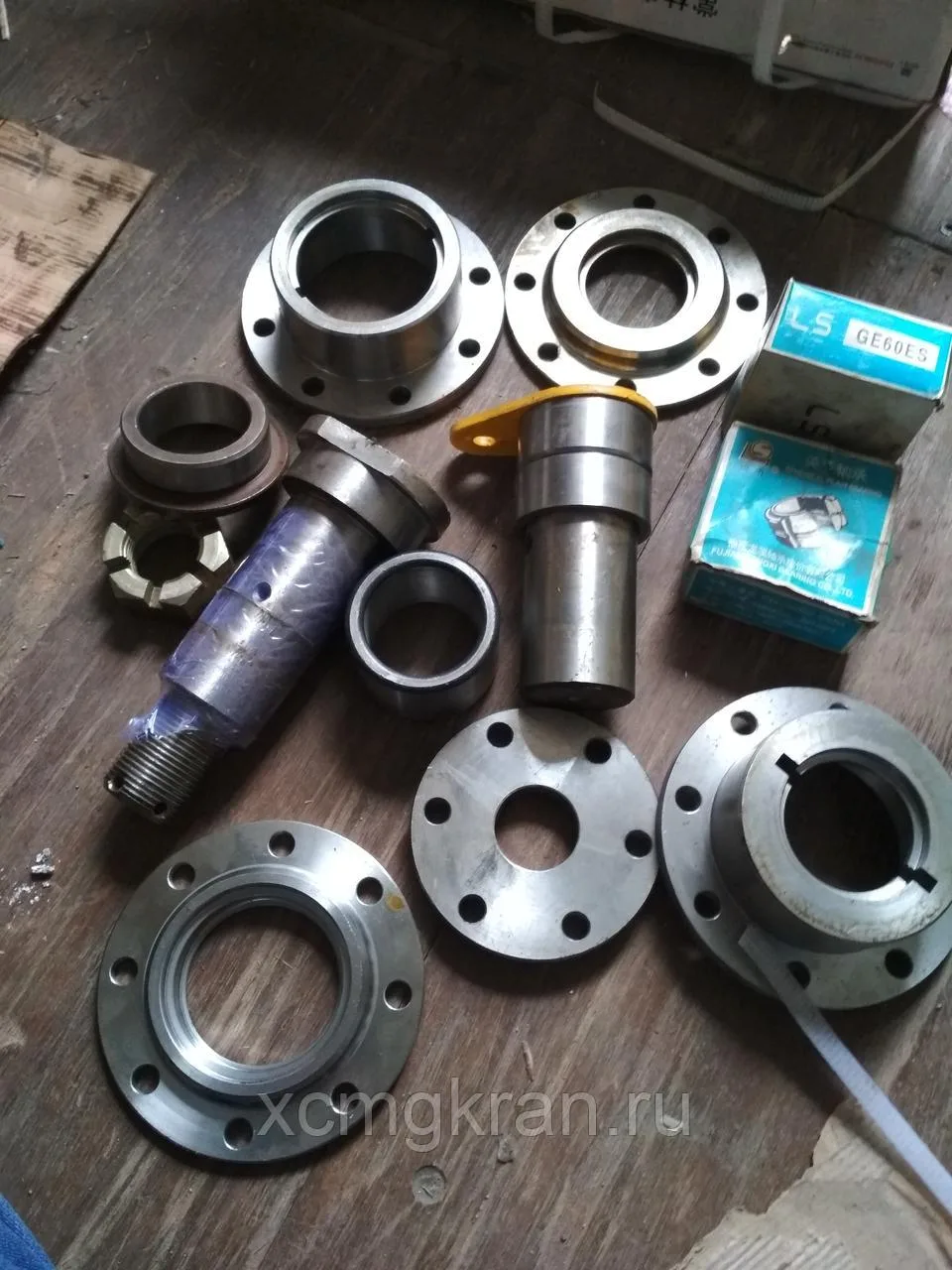

Пальцы рамы погрузчика CHANGLIN 936

序号

No.

零 件 代 号

Part  No.

版本

Ver.

名               称

Part  Name

数量

Q’ty

适用车号

Suit Num.

选装

Cho

21

Z30.12-14

1

垫圈Φ16×Φ11 t0.2

Washer

2

9360005-

22

Z30.12-14A

1

垫圈Φ16×Φ11 t0.5

Washer

2

9360005-

23

936.12.6-3

2

下铰接轴

Shaft

1

9360005-

24

936.12.6-4

1

上轴套

Sleeve

1

9360005-

25

B-G061700-00010

1

螺母M14ZnD

Nut

16

9360005-

26

B-G000930-00005

1

垫圈 14

Washer

16

9360005-

27

B-G09877A-00066

1

油封B75×95×10B

Sealing Ring

2

9360005-

28

936.12.6-5

2

下轴承盖

Bearing cover

1

9360005-

29

B-G091630-00005

1

关节轴承 GE60Es

Bearing

2

9360005-

30

936.12.6-6

2

下轴承座

Bearing cover

1

9360005-

31

B-G057820-00241

1

螺栓M14×75-10.9ZnD

Bolt

16

9360005-

32

B-Q020490-00003

1

垫圈 12

Washer

6

9360005-

33

B-G057830-00195

1

螺栓M12×50-10.9ZnD

Bolt

6

9360005-

34

Z30.12M-5

1

螺母

Nut

1

9360005-

35

B-G000910-00077

1

销6.3×80ZnD

Pin

1

9360005-

36

936.12.6-7

1

下轴套

Sleeve

1

9360005-

37

Z30.12C-4

1

调整垫片 t1

Shim

2

9360005-

38

Z30.12C-4A

1

调整垫片 t0.5

Shim

2

9360005-

39

Z30.12C-4B

1

调整垫片 t0.2

Shim

2

9360005-

40

Z30.12M-4

1

档板

Baffle

1

9360005-

41

B-G057830-00072

1

螺栓M16×40-10.9ZnD

Bolt

1

9360005-

42

B-Q020490-00007

1

垫圈 16

Washer

1

9360005-

43

936.12.6.1

1

上铰接轴

Shaft

1

9360005-

44

B-G09877A-00065

1

油封B60×80×8B

Sealing Ring

2

9360005-

45

936.12.6-2

2

上轴承盖

Bearing cover

1

9360005-

46

936.12.6-1

2

上轴承座

Bearing seat

1

9360005-

47

B-J07940B-00001

1

油杯 45°M10×1

Grease fitting

2

9360005-
