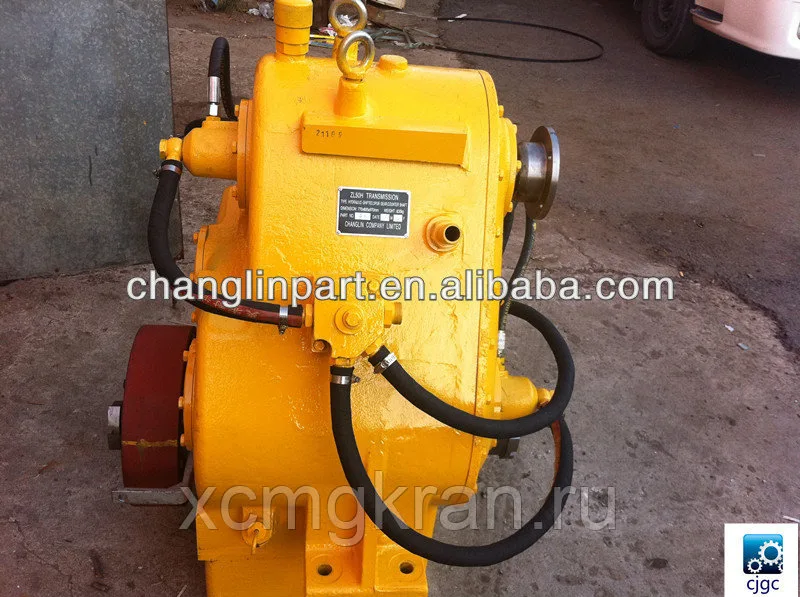

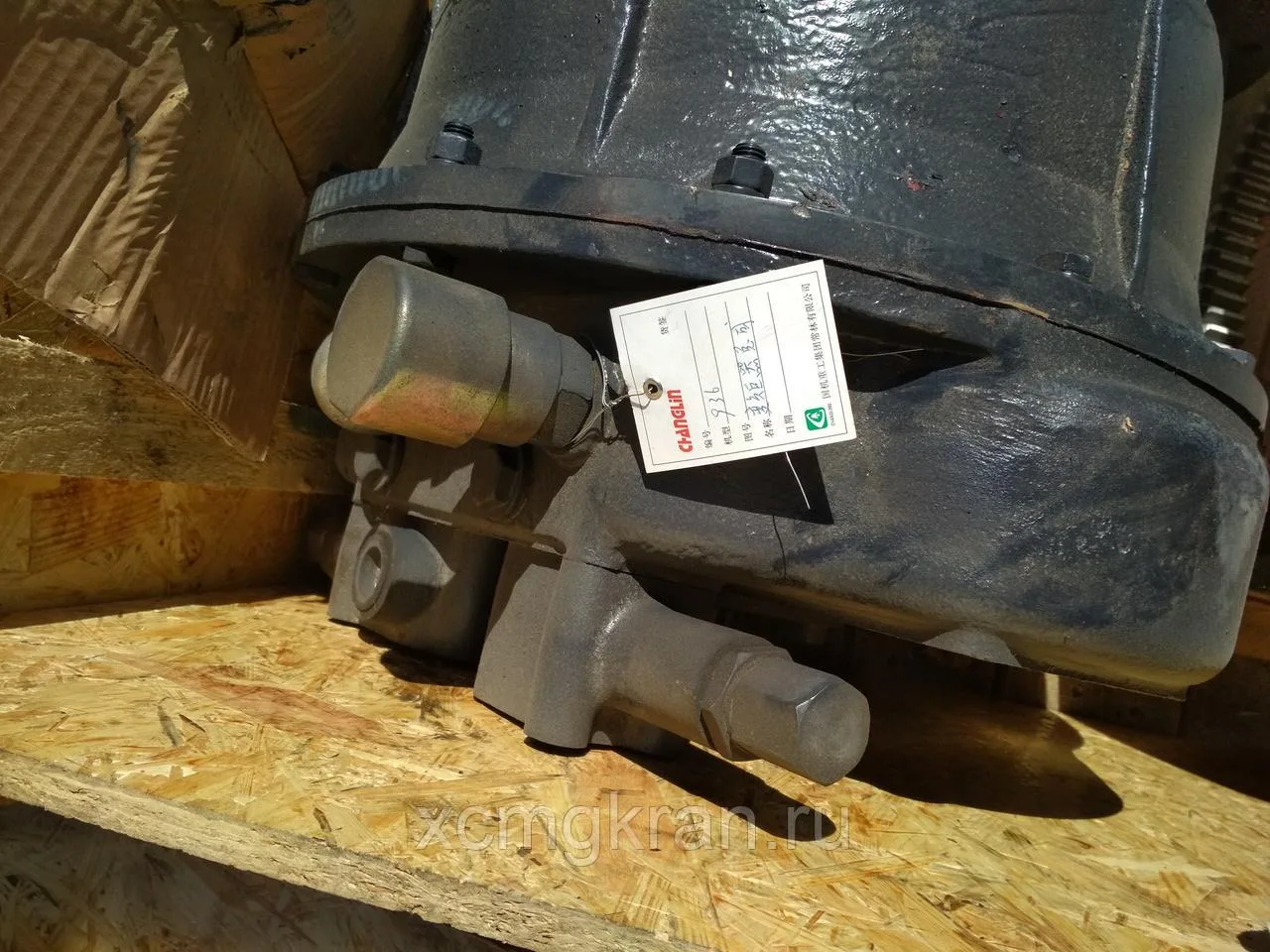

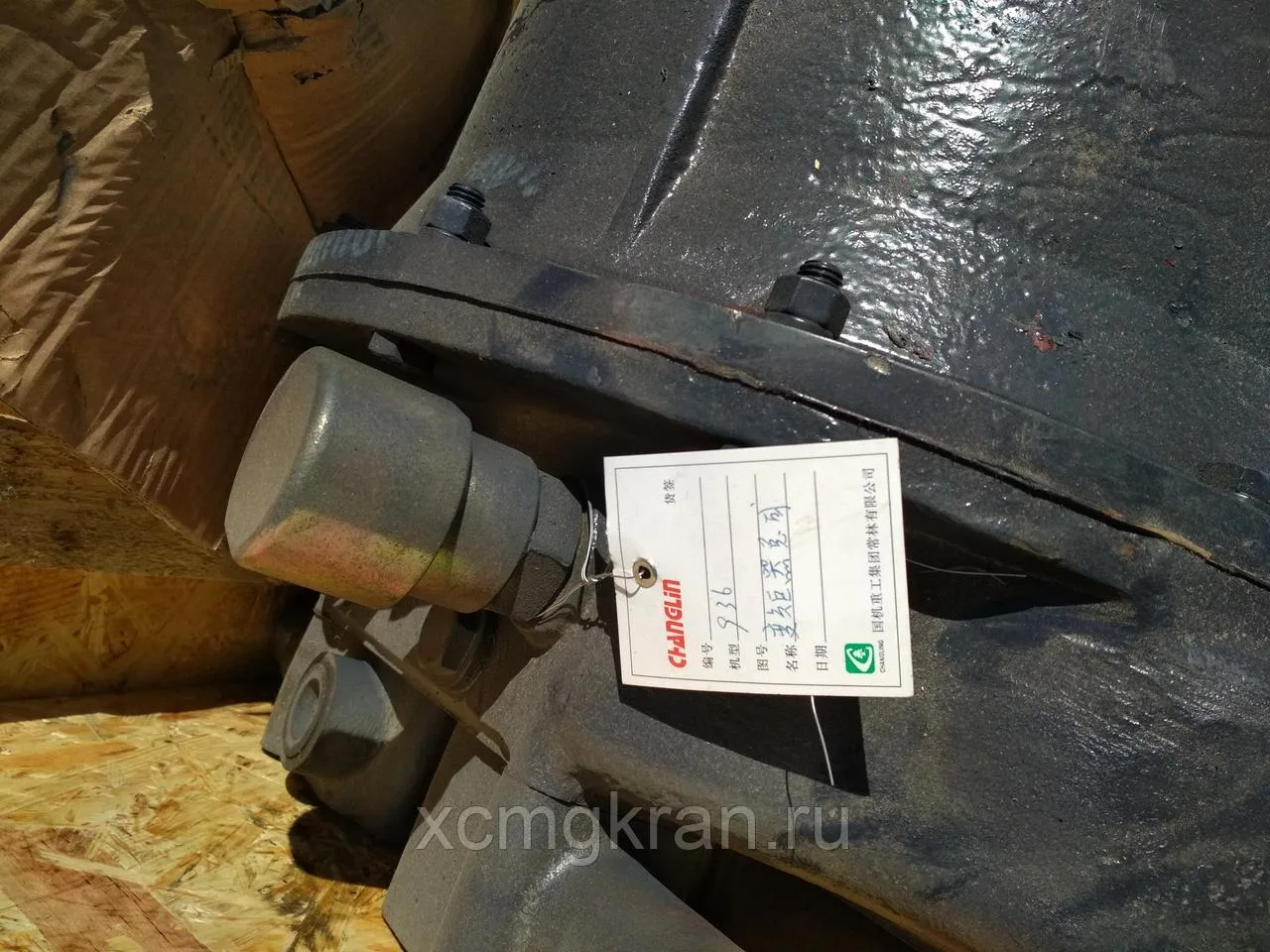

КПП погрузчика CHANGLIN 936 чанлин

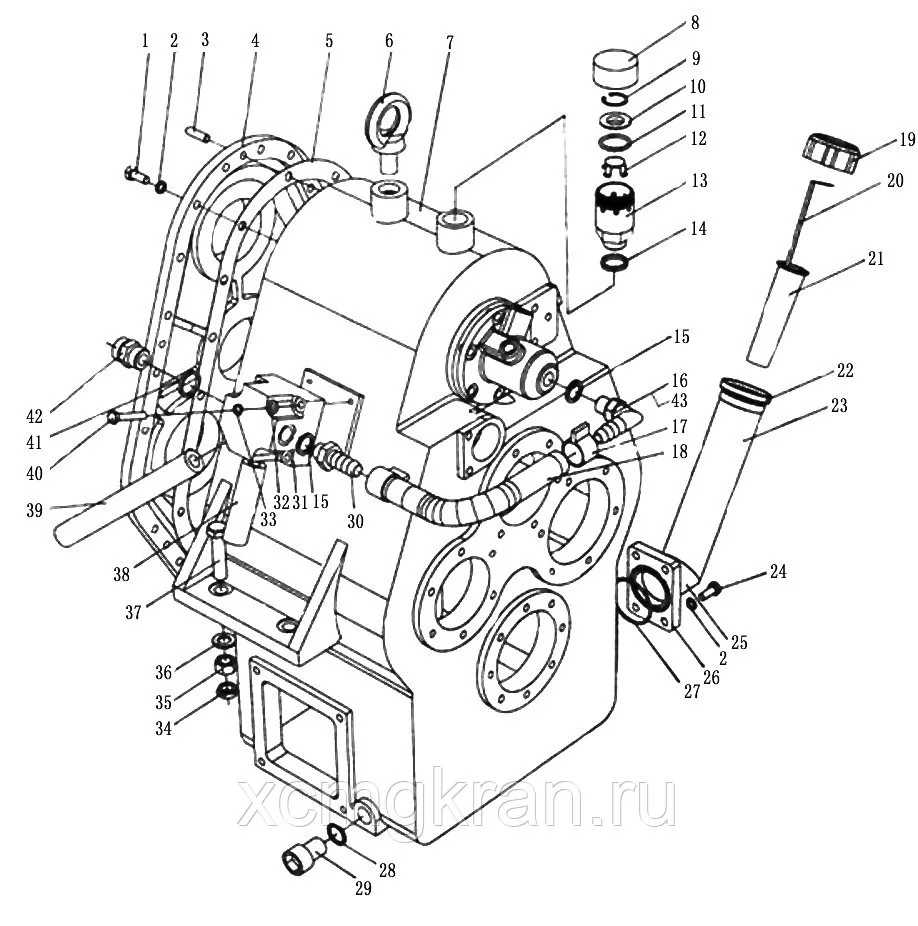

Коробка переключения передач фронтального погрузчика CHANGLIN 936
|
序号 No. |
零 件 代 号 Part No. |
版本 Ver. |
名 称 Part Name |
数量 Q’ty |
|
|
1 |
B-G057830-00010 |
1 |
螺栓M10×30 ZnD |
Bolt |
24 |
|
2 |
B-G000930-00001 |
1 |
垫圈10 |
Washer |
28 |
|
3 |
B-G001180-00001 |
1 |
销A10×35 |
Pin |
2 |
|
4 |
Z30E.4-5 |
1 |
箱盖 |
Cover |
1 |
|
5 |
Z30E.4-4 |
1 |
纸垫 |
Paper pad |
1 |
|
6 |
B-G008250-00003 |
1 |
吊环螺钉M20 ZnD |
Screw |
1 |
|
7 |
Z30E.4-1 |
1 |
箱体 |
Case |
1 |
|
8 |
Z30.4.16-3 |
1 |
外盖 |
Cover |
1 |
|
9 |
B-G00895A-00001 |
1 |
挡圈 40 |
Snap ring |
1 |
|
10 |
Z30.4.16.1 |
1 | 过滤盘 | Filter plate |
1 |
|
11 |
B-Q020710-00064 |
1 |
O形密封圈40×3.5 |
O-ring |
1 |
|
12 |
Z30.4.16-2 |
1 |
杯盖 |
Cover |
1 |
|
13 |
Z30.4.16-1 |
1 |
通气杯 |
Aerating cup |
1 |
|
14 |
B-J010020-00010 |
1 |
垫圈30 |
Washer |
1 |
|
15 |
B-J010020-00006 |
1 |
垫圈20 |
Washer |
6 |
|
16 |
Z30.4M.1.1 |
1 |
管接头 |
Elbow |
3 |
|
17 |
B-J088700-00014 |
1 |
喉箍d32 |
Clip |
6 |
|
18 |
Z30E.4.14-2 |
1 |
输油胶管Φ16×330 |
Hose |
1 |
|
19 |
Z30E.4.12-6 |
1 |
盖 |
Cover |
1 |
|
20 |
Z30E.4.12-2 |
1 |
油尺 |
Oil gauge |
1 |
|
21 |
Z30E.4.12-7 |
1 |
垫 |
Plate |
1 |
|
22 |
Z30E.4.12-1 |
1 |
接头 |
Joint |
1 |
|
23 |
Z30E.4.12-4 |
1 |
钢管60×3.5 |
Steel pipe |
1 |
|
24 |
B-G057830-00010 |
1 |
螺栓M10×30 ZnD |
Bolt |
4 |
|
25 |
Z30E.4.12-5 |
1 |
钢管60×3.5 |
Pipe |
1 |
|
26 |
Z30E.4.12-3 |
1 |
法兰 |
Flange |
1 |
|
27 |
B-Q020710-00091 |
1 |
O形密封圈 70×3.1 |
O-ring |
1 |
|
28 |
B-J010020-00008 |
1 |
垫圈24 |
Washer |
1 |
|
29 |
B-J010000-00010 |
1 |
螺塞M24×1.5 ZnD |
Plug |
1 |
|
30 |
Z30.4.17-3 |
1 |
管接头 |
Joint |
3 |
|
31 |
Z30E.4.14-1 |
1 |
冷却油分流器 |
Diverter |
1 |
|
32 |
B-G00097B-00023 |
1 |
垫圈8ZnD |
Washer |
3 |
|
33 |
B-G000930-00017 |
1 |
垫圈8 |
Washer |
3 |
|
34 |
B-G061720-00004 |
1 |
螺母M16 ZnD |
Nut |
4 |
|
35 |
B-G061700-00014 |
1 |
螺母M16 ZnD |
Nut |
4 |
|
36 |
B-G00097B-00008 |
1 |
垫圈16ZnD |
Washer |
4 |
|
37 |
B-G057820-00087 |
1 |
螺栓M16×70 ZnD |
Bolt |
4 |
|
38 |
Z30E.4.14-4 |
1 | 输油胶管Φ16×520 | Hose |
1 |
|
39 |
Z30E.4.14-3 |
1 |
输油胶管Φ16×610 |
Hose |
1 |
|
40 |
B-G057830-00151 |
1 |
螺栓M8×50 ZnD |
Bolt |
3 |
|
41 |
B-J010020-00009 |
1 |
垫圈27 |
Washer |
1 |
|
42 |
936.2-2 |
1 |
接头 |
Joint |
1 |
|
43 |
B-J009990-00016 |
1 |
螺栓M20x1.5×38ZnD |
Bolt |
3 |

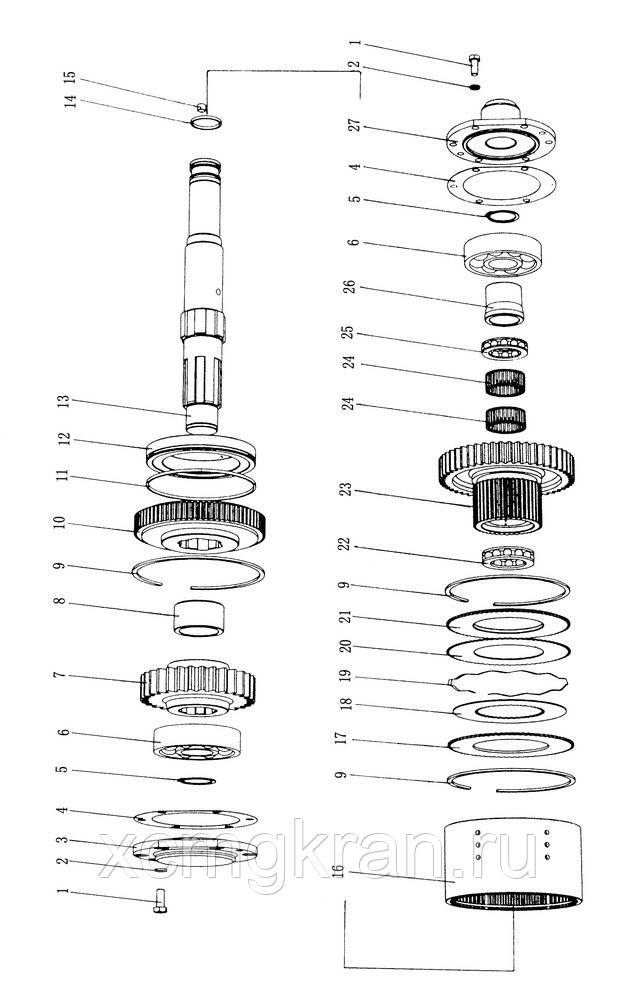

Вал кпп Z30E.4A.1 передней задней скорости погрузчика CHANGLIN 936
|
序号 No. |
零 件 代 号 Part No. |
版本 Ver. |
名 称 Part Name |
数量 Q’ty |
适用车号 Suit Num. |
选装 Cho |
|
|
1 |
B-G057830-00006 |
1 |
螺栓M10×25 ZnD |
Bolt |
12 |
9360005- |
|
|
2 |
B-G000930-00001 |
1 |
垫圈10 |
Washer |
12 |
9360005- |
|
|
3 |
Z30.4.1-15 |
1 |
轴承盖 |
Cover |
1 |
9360005- |
|
|
4 |
Z30.4.1-14 |
1 |
垫 |
Pad |
1 |
9360005- |
|
|
5 |
W-15-00114 |
1 |
密封圈AE2857E0（NOK） |
Oil seal |
1 |
9360005- |
|
|
6 |
B-G00894A-00017 |
1 |
挡圈50 |
Snap ring |
1 |
9360005- |
|
|
7 |
B-G002760-00019 |
1 |
滚动轴承6210 |
Bearing |
1 |
9360005- |
|
|
8 |
Z30E.4.1-2 |
1 |
轴承隔套 |
Sleeve |
1 |
9360005- |
|
|
9 |
B-G003010-00002 |
1 |
轴承8110 |
Bearing |
2 |
9360005- |
|
|
10 |
W-03-00007 |
1 | 轴承9243/55 | Bearing |
2 |
9360005- |
|
|
11 |
Z30E.4.1-3 |
1 |
前进档齿轮 |
Gear |
1 |
9360005- |
|
|
12 |
B-G003010-00003 |
1 |
轴承8111 |
Bearing |
2 |
9360005- |
|
|
13 |
Z30E.4.1-1 |
1 |
进退档轴 |
Shaft |
1 |
9360005- |
|
|
14 |
Z30.4.1-19 |
1 |
油封环 |
Oil seal ring |
4 |
9360005- |
|
|
15 |
B-G000780-00006 |
1 |
螺钉M12×12 |
Screw |
2 |
9360005- |
|
|
16 |
Z30.4.1-16 |
1 |
挡圈 |
Snap ring |
4 |
9360005- |
|
|
17 |
Z30.4.1-11 |
1 |
盖板 |
Cover |
2 |
9360005- |
|
|
18 |
Z30.4.1-4 |
1 |
主动片 |
Drive disk |
16 |
9360005- |
|
|
19 |
Z30.4.1-6 |
1 |
波形弹簧 |
Wave spring |
32 |
9360005- |
|
|
20 |
Z30.4.1-5 |
1 |
从动片 |
Driver disk |
16 |
9360005- |
|
|
21 |
Z30.4.1-9 |
1 |
压板 |
Plate |
2 |
9360005- |
|
|
22 |
Z30.4.1-8A |
1 |
活赛 |
Piston |
2 |
9360005- |
|
|
23 |
Z30.4.1-22B |
1 |
油封环 |
Oil seal ring |
2 |
9360005- |
|
|
24 |
Z30.4.1-10 |
1 |
齿圈 |
Gear ring |
1 |
9360005- |
|
|
25 |
Z30.4.1-7A |
1 |
缸体 |
Cylinder body |
1 |
9360005- |
|
|
26 |
Z30E.4A.1-1 |
1 |
倒档齿轮 |
Gear |
1 |
9360005- |
|
|
27 |
Z30E.4.1-5 |
1 |
轴承隔套 |
Sleeve |
1 |
9360005- |
|
|
28 |
B-G002760-00018 |
1 |
轴承6209 |
Bearing |
1 |
9360005- |
|
|
29 |
B-G00894A-00015 |
1 |
挡圈45 |
Snap ring |
1 |
9360005- |
|
|
30 |
Z30E.4.1-7 |
1 |
垫 |
Pad |
1 |
9360005- |
|
|
31 |
Z30E.4.1-6 |
1 |
轴承盖 |
Cover |
1 |
9360005- |
|
Z30E.4.3 вал кпп CHANGLIN 936
|
